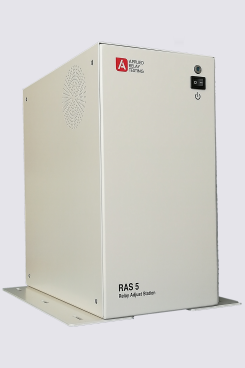

RAS 5 - Relay Adjust System

Product Summary

The RAS 5 is a compact stand alone relay adjust test system. Supplied with a touch screen monitor, operators can quickly and simply select and run pre-written test programs. A graphical operator page provides instant indication of the key coil and contact parameters. Optional foot pedals provide hands-free coil control to assist contact adjustment.

Key Features

  • Tests AC and DC coil relays both latching and non latching
  • Tests devices with up to 6 form C contacts
  • Performs all basic parametric relay tests
  • Option for relays with integral FET/transistor control pin
  • Simple touch screen operation
  • Up to 4 foot pedals for hands-free coil control.
  • Stand alone Windows software provided for test program creation.
  • Firmware flashable for test program enhancements.
